Kile® Thresh Bars

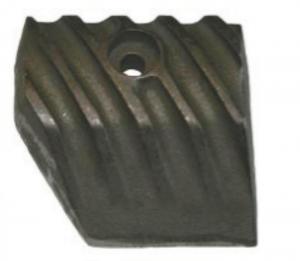

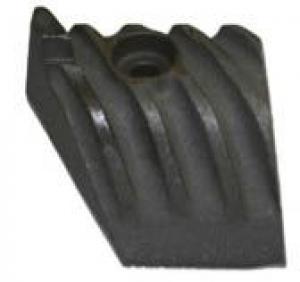

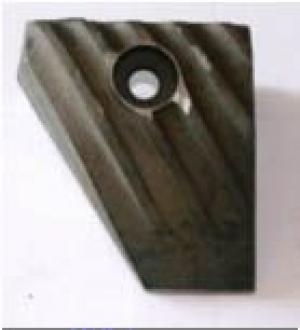

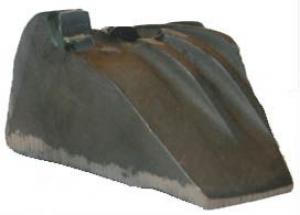

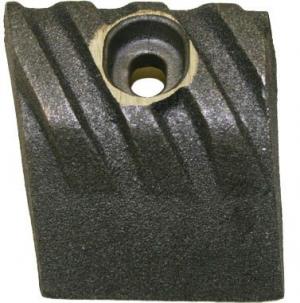

Our K505TD has a ten degree side. The purpose of this bar is to maximize the contact surface on the top of the bar to the concave. The K506 bar is an all purpose bar. Its extended rasped ramp, begins rasping sooner allowing more crop to rub on itself. These deeper and wider rasps, on each bar, are aggressive yet gentle on the crop, allowing the material to be managed thru the threshing/separating system. K507 extended rasp spiked bar is used, as needed, when cutting rice, corn & beans.
The K514 small tube extended rasp bar is the all purpose bar for small tube rotors, used for small seed and grain to corn and beans. The K 513 small tube spike bar is available with or without a carbide tip. The carbide tip dramatically extends the spike wear. This is the go-to bar for rice.
Spike Kile® Thresh Bars are noted for the following features:
• High performance bars for Case IH rotors
• Reduce over-threshing
• More surface area for exceptional crop feeding
• 30-50% larger surface area per bar than OEM
• 40 degree ramp angle
• Enhances the separation of material for a
cleaner tank sample
• Aggressive feeding yet gentle on all crops
• Made in the USA of cast chrome alloy (high impact resistant) excellent wear ability
• Spike bars, with carbide, maintain spike integrity
Visit Kile’s website for prices, dealer list, & other bars.
Contact: FARM SHOW Followup, Kile Machine and Manufacturing, Inc., 401 Squires Road, Rosalia, WA 99170 (ph 509 569 3814; info@kilemfg.com;
www.kilemfg.com)
