4-WD Tractor Built From Two Farmall Rear Ends

2021 - Volume #BFS, Issue #21, Page #10

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

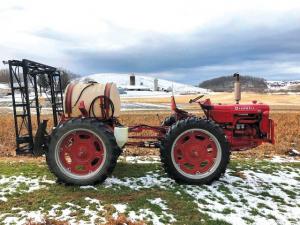

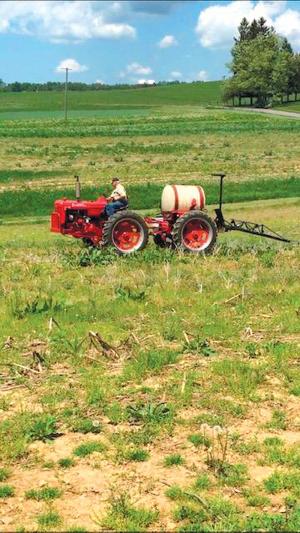

“It rides on narrow tires and has high clearance. Works great to spray corn and potato crops,” says William Davis, who built an articulated 4-WD tractor out of two 1950’s vintage Farmall C rear ends and a 45 hp. diesel engine from a Ford 3000 tractor.
“It took 3 years to build. The first year I got the two rear ends set up, the second year I installed the engine, and the third year I built the sprayer,” says Davis.
The 2 Farmall rear ends face each other and are connected by a shaft that is held in place by a pair of bearings. To marry the two rear ends, the Masontown, W. Va., farmer first built a hinged frame to hold the 2 units together. He then ran a driveshaft from the original pto on the front rear end to the back rear end, using a home-built articulated joint to provide articulation. It consists of 2 big bearings that support 1 1/4-in. dia. bolts. A pair of hydraulic cylinders that act on 2 attached channel irons are used to steer.
He powered the machine with a 40 hp. diesel engine out of a junked Ford 3000 tractor, which also provided the tractor’s hydraulic and steering systems. He also made a bell housing to fit the Ford engine to the IH tractor. He covered the engine with the junked hood off a Farmall C.
Both rear ends have separate transmissions and gearshift levers, which are connected. The pto on the front transmission drives the rear transmission and rear pto.
He used 1 1/4-in. aluminum angle iron to build the 30-ft., 5-section spray boom. The booms are raised and lowered by a pair of 2,500-lb. ATV winches powered by the tractor’s electrical system. The spray tank can hold 200 gal., and there is a smaller separate tank for direct injection of chemicals. A pair of spring-loaded electric screw jacks assist in raising and lowering the boom, which has a spring-loaded breakaway system.
“It has plenty of power,” says Davis. “I already had one of the tractors and bought the other one for $300.
“The tractor has both front and rear brakes. A hydraulic cylinder, operated by a master cylinder on the front rear end, is used to operate the brakes on the back rear end,” says Davis.
“I spent about $7,000 to build it and used only high quality parts because I wanted to do the job right.”
Contact: FARM SHOW Followup, William Davis, 1250 Long Hollow Road, Masontown, W. Va. 26542 (ph 304 435-9622; carolynbuchman@gmail.com).
