Twin Axle Tandem Spreader
 ✖  |
The Newton Crouch company has been in the spreading and spraying business since 1940. They claim their spreaders yield the flattest, most uniform spread pattern in the industry. Their products are used throughout the United States as well as in Canada, Mexico, Columbia, Japan, Belize and Thailand.
All Newton Crouch spreaders and sprayers are designed with as few moving parts as possible to make for low-maintenance, simple operation. They also come equipped with variable-rate and controller-driven technology. Most equipment is compatible with mounting on a chassis, pull-type or 3-point hitch.
The Newton Crouch Tandem Spreader has two axles, making it a versatile tool for spreading fertilizer, lime, plaster and dry chicken litter.

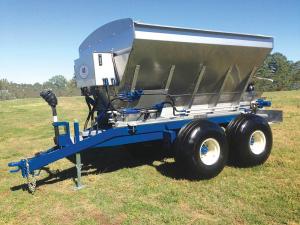

The NCI Model 47H Tandem Axle Spreader is the heaviest-duty model in the brand’s Spreadit Series. This fertilizer and lime spreader offers a 233-cu. ft. capacity for a maximum weight of 10 tons. It features a stainless-steel hull with steel dishes, blades, gate jack cover and conveyor.
Both axles are tandem and set up with heavy-duty slipper springs for security. Overall, the machine allows for a spread pattern of 80 ft. (or 50 ft. with dual spinners).
The spreader’s heavy-duty dishes have a 3/16-in. thickness and 24-in. circumference with six blades of 1/4-in. thickness. Likewise, the trailer-length frame fully supports the hull for better stability, and the trailer itself is made of tubing and protected with a powder-coated blue base. It comes with a 7,000-lb. drop leg jack, and the hull is bolted on for easier trailer maintenance. Choose between conveyor widths of 16 or 24 in. with a clinched chain.
Finally, the NCI Model 47H includes a Newton Crouch exclusive hydraulic system with an anti-cavitation device, pressure relief valve, and check valve. In this way, it’s designed to prevent you from accidentally hooking your spinners to the tractor backward and can be used for either an open or closed system. There’s also an adjustable flow control to prevent overspreading.
All Newton Crouch spreaders utilize common, everyday parts when possible, making them field serviceable.
Newton Crouch also provides training, service and parts. It’s also possible to request custom-made equipment based on the specifications you provide. Pricing depends on the features you choose, and an estimate is available by request.
Contact: FARM SHOW Followup, Newton Crouch, Griffin Office, PO Box 17, 890 East Solomon St., Griffin, GA 30223 (ph 800-241-1350; samantha@newtoncrouch.com; www.newtoncrouch.com).
