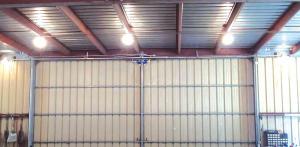

They Motorize Sliding Doors
Propel Sliding Door Automation has been opening and closing sliding shed doors for more than 10 years (Vol. 37, No. 5). The same basic system is unchanged.
The 24V DC motors open and close the doors. With power running through the rail above the header, there’s no need for wires to the motors. As with overhead
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
They Motorize Sliding Doors BUILDINGS New Techniques Propel Sliding Door Automation has been opening and closing sliding shed doors for more than 10 years Vol 37 No 5 The same basic system is unchanged The 24V DC motors open and close the doors With power running through the rail above the header there’s no need for wires to the motors As with overhead garage doors once closed the doors are effectively locked with no need for other locking hardware The system shares other similarities to overhead openers such as if doors encounter an object when closing The motor overload signals the controller to reverse to opening mode What has changed is the addition of door guides and winter options The guides that keep doors running straight are usually spaced 6 to 7 ft apart in the concrete lip They’re designed to be driven over with anything rubber “We now have the option of laying a gutter cable under the doors ” says Mark Gazda Propel Doors “We put a 1/4-in saw kerf in the concrete under the door and tuck in the cable It only costs about a dollar a foot but it gives you a 7 to 8-in swath of dry concrete ” Another change is the addition of covers for the door operators Originally the operators that control the motors were placed inside the building The covers allow them to be placed on the exterior “Exterior placement of the operators will open up new applications of the openers ” says Gazda “We plan to add solar power options ” Gazda notes that weight is not a challenge for his door-opening system “Most doors are designed to be pushed open by an average human ” he says “However we’ve done 1-ton doors for a steel company ” Propel Doors has a smaller system for small doors The company has even installed drive-thru systems “They were all remote-controlled so the vehicle could drive in the front and out the back ” says Gazda Gazda founded the company after developing an idea that came up over coffee While he now has a partner taking over the operations he has plans to complete before retiring “We’ll be introducing a lot of new products ” says Gazda “Before I retire we want to do gates sliding glass doors for homes and various types of shutters as well as storeroom gates for inside businesses ” Pricing for Propel door systems is based on the width of the opening and one or two doors Gazda estimates a dealer installation of openers for two 15-ft wide doors would run about $750 “We provide everything needed to install and use ” he says Contact: FARM SHOW Followup Propel Sliding Door Automation 19064 Thornbrook Rd Carlinville Ill 62626 ph 217-306-1756; mgazda@propeldoors com; www propeldoors com
