Hydraulic Hose Crimps Where Needed
 ✖  |

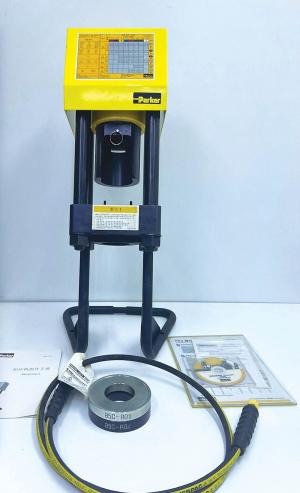

The KarryKrimp line of portable hose crimpers from Parker lets you make hydraulic hoses when you need them, where you need them. Any user can make factory-quality hose assemblies quickly, easily, and cost-effectively. Crimp the fitting to the proper diameter every time. The crimpers are easy to operate and built to provide years of dependable service. They can crimp straight or bent-stem fittings.
The KarryKrimp hydraulic hose crimping machine provides up to 30 tons of force to crimp heads on hoses from 1/4-in. up to 1 1/4-in. ID, 2-wire braid, and up to 5/8-in. ID, 4-wire braid. It weighs just 55 lbs.
The crimper operates at up to 10,000 psi. It has a length of 12 in., a width of 15 in., and a height of 30 in. It comes with two dies, a crimp head, hose assembly, and a stand. It’s priced at $5,360 at Grainger.com. The crimper tool alone is priced at $2,600 on the Parker website.
The KarryKrimp 2 has a 60-ton force and can crimp 1 1/4-in. ID, 2-wire braid, 1-in. ID, 6-wire spiral, and up to 1 1/4-in. ID, 4-wire spiral hoses.
The portable crimper does not include a power source. It can be used with any of the six pumps from Parker. They include small and large hand pumps, small and large electric pumps, an air/hydraulic pump, and a vehicle battery-powered pump. All deliver up to 10,000 psi. Prices are available from distributors.
The Parkrimp family of crimping machines offers a broad array of crimping equipment from small to large and portable to bench or floor mount. Visit the Parker website for a list of local distributors. Some products are for sale directly from Parker.
Contact: FARM SHOW Followup, Parker (ph toll-free 800-272-7537; cparker@support.parker.com; https://ph.parker.com).
