Homemade Lawn Tractor Roller ‘Stripes’ Grass

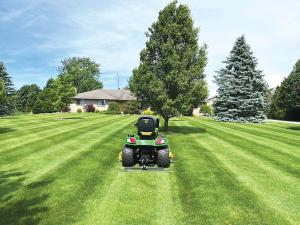

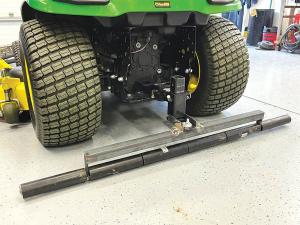

Homemade Lawn Tractor Roller ‘Stripes’ Grass HAY & FORAGE HARVESTING Mowers 38 Dwayne Hanuszak liked the stripes the rollers on the deck of his old mower used to leave on his lawn He felt the stripes gave it a professional look like a golf course “I spend a lot of time cutting my grass and thought I might as well make it look a little more interesting ” says Hanuszak “I always liked the look of stripes on golf courses I tried using my lawn roller to make them but felt it was hard on the grass ” Hanuszak made an attachment for his Deere X730 lawn tractor to give his lawn the look he wanted His first thought was to use the garden tractor’s hydraulics to adjust the roller but he came up with a simpler design instead He copied it from his brother’s old Allis-Chalmers mower “I grabbed some 9-in boat trailer rollers and steel rod at my local auto store ” says Hanuszak “I slipped the rollers on the rod and hung it from a 36-in piece of scrap angle iron ” He used an adjustable step-down trailer hitch to mount it to the garden tractor’s receiver hitch Hanuszak bolted the hitch to the angle iron He reinforced the connection by welding two short pieces of angle iron to either side of the hitch “I set the step-down hitch so the roller is about 2-in off the ground when in use ” says Hanuszak “It pushes over the grass but doesn’t impact the gravel when I turn on the driveway To remove it I just pull the receiver hitch pin It puts in the stripes I wanted making the lawn look professionally cut ” Contact: FARM SHOW Followup Dwayne Hanuszak 24487 Prince Albert Rd Chatham Ontario Canada N7M 5J2 ph 519-365-0610

To read the rest of this story, download this issue below or click here to register with your account number.
