Swing Auger Extends Into Place
![]() |
“We showcased it at the Farm Progress Show this past summer, and it was well received,” says Jason Jones, AGI. “It’s still fairly new to our U.S. dealers, but a few have it in stock. If not, it has a four-week turnaround.”

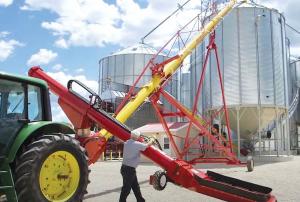

Designed to work with AGI MKX 13 and 16-in. augers, the X-Tend swing auger simplifies unloading and reduces the potential for auger mishaps. Jones suggests it saves time and reduces stress experienced with a standard swing auger when trying to do two tasks at once.
“With a conventional swing auger, an operator is often using his remote to move it into position as he pulls in,” says Jones. “It’s easy to make a mistake. With X-Tend, he only extends it when the truck is in place. Then, he can use the swing function to move back and forth as needed without repositioning the truck. When the truck is empty, he presses retract and drives away.”
The 17-ft. X-Tend swing auger is low-profile, making it easy to position under grain trailers. PTO-powered, the dual flighting channels grain flow into the auger, which has an 11,000 bu./hr. capacity. The auger has 1/4-in. thick flighting and a 12-gauge tube. Three-way hydraulic controls are mounted on the swing tube, and a remote control option is available.
“The X-Tend swing auger is a premium accessory,” says Jones. “It adds approximately $16,000 to the price of a standard 13-in. auger. On a 16-in. auger, the price is closer to $20,000.”
Contact: FARM SHOW Followup, AG Growth International, 198 Commerce Dr., Winnipeg, Manitoba, Canada R3P 0Z6 (socialmedia@aggrowth.com; www.aggrowth.com).
