Grain Bin Manlift
![](/images/resize.php?w=300&img=/images/articles/10/4/196_l.jpg) ✖ ![](/images/ajax-loader.gif) |

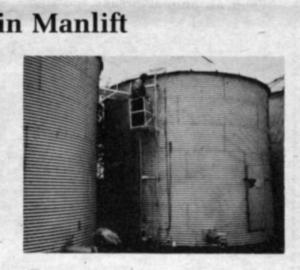

The frame of the lift consists of 2 pieces of 2-in. channel iron that bolt to the grain bin at 5 different points. Four roller bearings attached to the platform ride up the 2-in. channel, pulled by a cable winch driven by a 1/3-hp. electric motor. From the top of the lift, the operator takes a catwalk to other bins.
Contact: FARM SHOW Followup, Henry Larson, Bement, Ill. 61813.
