Booming Demand For New-Style Bunker Silo

1978 - Volume #2, Issue #6, Page #32

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

"We're sold out way into next yearjust can't make them fast enough to meet demand," says engineer Tom Wrangell who helped develop his company's new precast concrete bunker silo.
"We believe there is no cheaper way to ensile - and our sales are proving it," Wrangell told FARM SHOW. Since the Utility Vault Co., headquartered at Guelph, Ont., introduced their new wrinkle in storing silage, the plant's entire production has been sold within a hundred mile radius of the plant.
"Our design is so simple that most any concrete plant could easily copy and produce it for customers in their area," says Wrangell, who adds that he'd be more than willing to work with other plants since his company has no plans to patent the silo design.
It features unique L-shaped concrete sections that fit together to form any size bunker silo. Individual L-shaped sections are 8 ft. wide, 12 ft. high and have a 7 ft. long base. They're butted against each other to form an open-end bunker, then sealed together with Butyl rubber. A concrete floor then ties the whole enclosure into one solid unit.
Individual wall sections are 4 in. thick at the top and 8 in. thick at the bottom. The entire 7 ft. long base is 7 in. thick. A 112 in. reenforcing bar runs through each section at 4 in. intervals. In other words, there are 24 bars in each 8 ft. section. The bars are formed in the same L-shape as the walls, with a backwards loop in each corner where the walls and base met. This gives the walls a spring-like strength that enables them to withstand the pressure of thousands of tons of silage, and the heavy machinery used to pack it.
Each 12 ft. high section is freestanding and does not need backfill or trusses for support, according to Wrangell. In fact, one of the main advantages of the cantilevered walls is that you have a free wall to build against if you want to add on a lean-to or other structure for livestock, or for machinery storage.
To combat the effects of silage acids on the concrete, the company uses more than 5000 psi to entrap at least 7% air in the concrete, Wrangell explains,. In addition, the sloping grade of the silo allows acids to drain away. The company's "specs" on the cement being used are readily available, along with the recommended mixture for pouring the silo floor.
"We had two ideas in mind when we designed the system," explains Wrangell. "One, we wanted to deal directly with the farmer and eliminate the costly middleman. Two, we wanted the system to allow the farmer to do most of the work himself without placing too severe a demand on his time. We provide whatever guidance the farmer needs to construct the silo," Wrangell points out.
Once a farmer contacts the Utility Vault Co., company engineers visit the farm and advise him on developing the grade and drainage around and away from the site. The silo needs a solid base and at least a 2 in. grade for proper drainage, Wrangell points out.

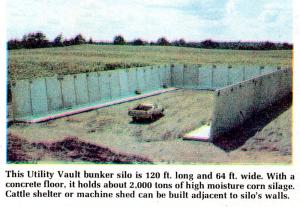

The largest bunk silo Utility has constructed so far was 80 by 115 feet, enough to hold 2,000 tons of 65% moisture corn. It took 21/2 days to assemble, using the company's heavy duty trucks and cranes to move and position individual 71/z ton sections. Another 32 by 80 ft. structure, designed to hold 600 tons, took 11 days.
The new-style silos cost farmers in the Guelph area $62 per running foot. That makes each section $496 and a 32 by 80 foot silo made to hold 600 tons of silage right at $12,000. These costs include engineering help in laying a solid foundation, delivery and installation of the wall sections and technical advice in completing the rest of the floor and setting up a feeding system.
Stress tests are now being conducted by the University of Guelph in Ontario to verify claims by the company regarding strength of the flewstyle silo.
For more details, including "how to build" construction tips, contact; FARM SHOW Followup, Tom Wrangell, Utility Vault Co. of Canada, Route 3, Guelph, Ont., Canada N1H 6H9 (ph 519 836-8250).
