Farmall F20 With High Wheels
 ✖  |

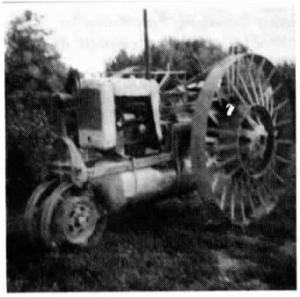

I'm sending along a photo of a Farmall F20 tractor that a friend of mine, Isaac Newswanger, Kutztown, Penn., rigged up with high wheels to foliar feed corn with liquid fertilizer. I occasionally rent it to fertilĦize my corn and thought it would be someĦthing exotic to show other FARM SHOW readers.
It's a repowered Farmall F20 with a 4-cyl. Ford industrial engine and hand clutch hooked up directly to the transmission. The 7-ftft tall steel wheels were homebuilt, resultĦing in a 51-in. axle clearance. A 110 gal. steeltank mounts underneaththeframe and a Hypro high-pressure pump mounts on the pto. It pumpsfertilizeroutthrough a rainbow fan nozzle mounted behind the driver. It sprays a 30 ftft swath at a time at about 100 psi. It gets the job done. (Aaron W. Burkholder, 460 Bowers Rd., Kutztown, Penn..19530)
Click here to download page story appeared in.
Click here to read entire issue
Farmall F20 with high wheels TRACTORS Made-It-Myself 17-3-36 I'm sending along a photo of a Farmall F20 tractor that a friend of mine, Isaac Newswanger, Kutztown, Penn., rigged up with high wheels to foliar feed corn with liquid fertilizer. I occasionally rent it to fertilĦize my corn and thought it would be someĦthing exotic to show other FARM SHOW readers.
It's a repowered Farmall F20 with a 4-cyl. Ford industrial engine and hand clutch hooked up directly to the transmission. The 7-ftft tall steel wheels were homebuilt, resultĦing in a 51-in. axle clearance. A 110 gal. steeltank mounts underneaththeframe and a Hypro high-pressure pump mounts on the pto. It pumpsfertilizeroutthrough a rainbow fan nozzle mounted behind the driver. It sprays a 30 ftft swath at a time at about 100 psi. It gets the job done. (Aaron W. Burkholder, 460 Bowers Rd., Kutztown, Penn..19530)
