Nifty Barbed Wire Unroller
Most barbed wire unrollers work well as long as there's only a partial roll of wire on them, says William J. Kuryliw. How-ever, with a new roll the wire has a tendency to jump off the side of the unroller and wrap around the shaft, the Lac La Biche, Alberta, farmer adds.

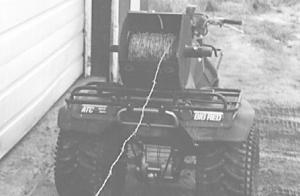

"To solve the problem, I built a no-wrap' unroller out of scrap materials that encloses most of the spool so the wire can't slip off," Kuryliw says. "I've put up a bunch of fence since I built it a couple of years ago and it works perfectly. I built it to mount on my Honda 3-wheel ATV, but it could be adapted to fit a pickup, or tractor 3-pt."

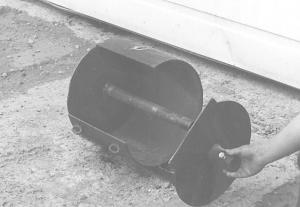

Kuryliw used a 1-ft. length of steel pipe 16-in. in dia. He welded a side plate on one end of the drum and a 1 3/4-in. dia. shaft horizontally through the center. He made a removable side plate for the opposite end of the drum to load the unroller and welded on a collar that fits over the shaft with a 1/ 2-in. bolt that acts as a set screw. He cut an opening about 1/4 the circumference of the drum in the back for the barbed wire to spool from. A 1/2-in. by 6-in. vertical slot cut in the front of the drum allows him to see at a glance from the ATV's seat how much wire he has left.
"I can unroll standard spools of barbed wire as fast as is safe from an ATV," he says.
Contact: FARM SHOW Followup, William J. Kuryliw, Sr., Box 1434, Lac La Biche, Alberta, Canada T0A 2C0 (ph 403 623-2257).
