Rotary Till Plant Rig Makes Just One Pass

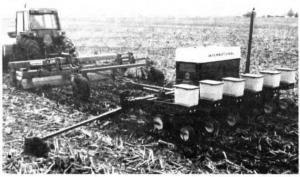

Jim Schierer, Metamora, Ill., combines a 6-row IH Cyclo air planter with an Evers-man pto-powered rotary tiller to make an easy-to-operate, effective one-pass planting system.
The tiller-planter, which is 15 ft. wide, is pulled by a Case/IH 180 hp. tractor. The tiller works the ground 2 to 3 in. deep. The tracto
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Rotary till plant rig makes just one pass PLANTING EQUIPMENT Miscellaneous 14-1-6 Jim Schierer, Metamora, Ill., combines a 6-row IH Cyclo air planter with an Evers-man pto-powered rotary tiller to make an easy-to-operate, effective one-pass planting system.
The tiller-planter, which is 15 ft. wide, is pulled by a Case/IH 180 hp. tractor. The tiller works the ground 2 to 3 in. deep. The tractor carries saddle tanks with 200 gal. of herbicide that's incorporated as the ground is tilled for planting. Chemicals are applied with a boom mounted on the front of the tractor.
The hydraulic pump that powers the Cyclo mounts on top of the Eversman tiller and is belt-driven off the pto shaft as it drives the tiller.
Contact: FARM SHOW Followup, Jim Schierer, Rural Route, Metamora, Ill. 61548 (ph 309 367-4482). For more information on Eversman tillers, con-tact: FARM SHOW Followup, Evers-man Mfg. Co., P.O. Box 4345, Denver, Colo. 80204 (ph 303 572-1140).
