Crop Drying Furnace Burns Corn Stalks

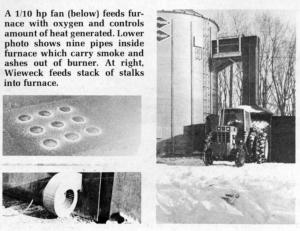

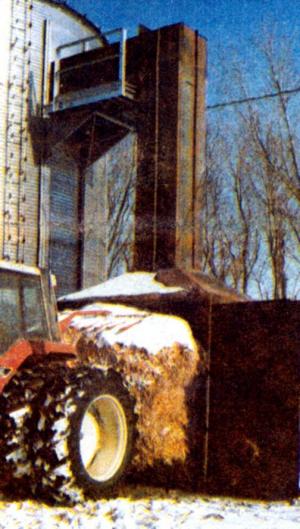

Crop Drying Furnace Burns Corn Stalks ENERGY Crop Residue Burners If you knew you could dry your entire corn crop with just 5 acres of cornstalks would there be any reason to keep buying and using LP gas? Absolutely not answers Greg Wieweck Buffalo Lake Minn a 27-year-old farmer with an engineering background who appears to have beaten just about everybody in the race to develop a practical way to use crop dryers with corn stalks straw and other low-cost residue He s designed and already tested a crop residue burner that could well revolutionize the crop drying industry Last fall he used his new stalk fired furnace to dry his entire corn crop 16 000 bu with one-tan stacks of corn stalks fed into the huge throat of the furnace one at a time I m not experimenting Wieweck told FARM SHOW This is the only crop-drying system I own and it s the only one I need I ve proved at least to my satisfaction that we can get steady productive heat from stalks straw and other crop residues This burner will burn big round bales square bales or trash - anything around the farm that s combustible And because it uses a heat exchanger there s no contamination of the crop being dried with smoke soot or other debris Wieweck used only 5 acres of stalks to dry his corn which came in from the field at 24 to 25% moisture and was dried to about 13% Think what could be done with 200 to 300 acres of stalk residue In addition tc drying all my crops I could heat my barn my house and have enough left over to distill alcohol for running my tractor and more Wieweck didn t start building his burner until last September but had spent months working the design out on paper A trained engineer who recently left industry to farm full-time he says he knew once he had the design drawn up that it would work I couldn t believe that no one had done it before The burner combines a controlled burning chamber with a forced-air heat exchange system meaning there are two layers to the furnace and chimney Inside residue burns and gives off heat The heat passes through the inside walls to the second layer completely sealed off from the burning chamber and filled with fresh air That air heats up and is passed up the outside layer of the chimney and into the bin Any smoke and ash exits through its own section of chimney outside It takes Wieweck about a minute to load the burner with a stack of corn stalks using his Hesston stalk mover One stack will burn for seven hours - more than enough time to take out 10 points of moisture in 1 000 bu of 24% moisture corn says Wieweck Although his residue burner is built for his Stormor overhead bin dryer he feels it will readily adapt to other bin drying systems I ve already got plans for building a furnace for other types of bin dryers says Wieweck who has applied for a patent on his residue burning cropdryer He figures he saved about $1 000 in fuel costs last year by using stalks to dry the 16 000 bu of corn produced on his own farm He invested $2 000 worth of materials into the residue burner and countless hours of engineering Here s a closer look at how it works: Individual stacks of cornstalks or straw or other crop residue are loaded into the furnace and lit If the fire isn t already burning Wieweck uses a match but says he would use propane to light hard to burn materials such as moldy hay bales The furnace doors are shut and a small 1110 hp fan mounted at the bottom of one door is started It feeds the fire oxygen and is connected to a thermostat measuring the temperature of the air leaving the burner and entering the dryer When that air reaches drying temperature the fan stops stopping the fire Wieweck says the fan runs 30 seconds out of every 5 minutes to maintain a 120 degree temperature Three sides of the burning chamber everything but the doors are covered with a secondary chamber with 4 inches of space between A high-speed 36 in fan forces air into the secondary chamber up the chimney and into the bin The air is warmed by the fire inside which reaches temperatures of 1 500 degrees Ash and smoke inside the burning chamber are carried up and out of the chimney by nine 3-in pipes Fresh air on Its way inside to dry corn rises in and around the pipes but is never exposed to smoke leaving the chimney That s all there is to it explains Wieweck You control the burning of crop residue by controlling the amount of oxygen that reaches the fire This system does it with a tiny fan a simple thermostat and a sealed system The burner is 80 to 90% efficient Attempts in the past to build residue burners have only been able to get around 10% of the heat possible out of the residue As a result according to Wieweck they were wasteful and had to be filled too often He adds that One problem with using corn stalks is farmers say they don t have time to make stacks during harvest Well it took me 2 hrs to make 18 stacks I think when the price of LP gas goes to 75c a gal there will be plenty of time Wieweck says his residue burner can be used to provide heat anywhere it s needed on the farm Bigger burners and higher density balers and stackers will make the system even more useful For instance he thinks stacks made by the new Hesston high-density stacker will burn 20 hours or more Wieweck says he s available as a consultant to interested farmers and will custom-design a residue burning crop-dryer system to meet each farm s particular needs The size and shape of the burner can be changed for different crop residues and to fit different dryers To get an idea of the price he says he would sell his present burner for about $4 000 For more details contact: FARM SHOW Followup; Greg Wieweck Route 2 Buffalo Lake Minn 55314
