Gilbert & Riplo Tracks For 4-WD Tractors

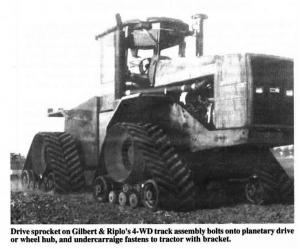

Gilbert & Riplo Tracks For 4-WD Tractors TRACTORS Traction Devices 18-6-26 Rubber tracks designed specifically for big 4-WD tractors are new from Gilbert & Riplo, Ravenna, Mich. The drive sprocket on the 4-WD track assembly bolts onto the planetary drive or wheel hub, and the undercarriage fastens to the tractor with a bracket. .A rubber-mount suspension system improves the ride. Rubber tracks are a natural for articulated 4-WD tractors. The two sets of tracks turn independently so they don't mound up dirt on headlands," says Fred Riplo. "Ground speed is limited to 10 to 12 mph because the drive sprocket on the tracks isn't as big as the drive sprocket on the tractor wheels. These tracks can't be used on combines because they're too small to provide ad-equate flotation (Gilbert & Riplo has other tracks for combines). We custom manufacture the tracks for different tractor makes and models due to differences in wheel hubs, planetary drives, and axles. A set of four tracks sells for $45,000 to $55,000. That sounds like a lot until you consider that when you order a new tractor with duals, the wheels, tires, and adapters can cost $25,000." The company also offers a new non-driven rubber-belted running gear designed to mount on manure spreaders, spray tanks, grain carts, etc. The pull-behind undercarriages are designed to carry equipment weighing up to 90,000 lbs. The Goodyear tracks are available in sizes up to 36 in. wide and 126 in. long and are equipped with "positive drive" center guide lugs. "A 1,000 bu. grain cart or 4,500 to 5,000-gal. liquid manure tank can be mounted on our largest tracked running gear," notes Riplo. A 16-in. wide, 75-in. long set of tracks sells for $17,500; a 36-in. wide, 126-in. long set of tracks sells for $28,000. Contact: FARM SHOW Followup, Gilbert & Riplo Co., 4865 South Ravenna Road, Ravenna, Mich. 49451 (ph 616 853-2284).
