3-Pt Boom
 ✖  |

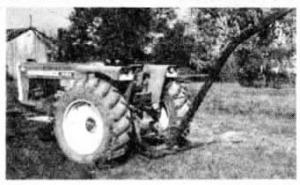

I'm sending a photo of a 3-pt. boom that I built for less than $20. It consists of a 4-in. "H" beam 11 ft. long. The beam is bent slightly about 4 ft. down from the upper end. ft's welded to a base plate that fits between the tractor hitch arms. A length of lift chain runs from the 3-pt. top link to a spot about 4 ft. up from the bottom of the beam. It's simple but effective. I used it to change a combine motor and it worked well. (Kenneth Stahlschmidt, Rt. 1, Box 205, New Douglas, IL. 62074)
