Poor Man's Big Bale Wrapper
![](/images/resize.php?w=300&img=/images/articles/18/2/25011_l.jpg) ✖ ![](/images/ajax-loader.gif) |
Finnish farmers Jan and Karl Erik Wasberg, who say they're avid FARM SHOW readers, built their own simple, low-cost bale wrapper for making high-moisture round bale silage that they say gets the job done fora fraction of the cost of commercial table-type bale wrappers.

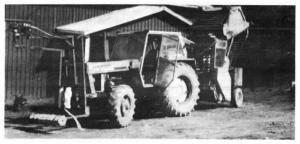

Their "poor man's" bale wrapper mounts on the front of the tractor pulling their big round baler. Instead of a roller table to rotate the bale while it's wrapped, they simply push the bale along the ground and wrap plastic around it as it rolls along.
The men made a frame out of tube steel to bolt to the front of the tractor. Just above ground level is a roller made out of steel discs that pushes the bale along the ground. A rotating arm swings around the bale with a roll of plastic. It's powered by a hydraulic motor that drives a 50:1 angled gearbox.
"You run slowly forward, wrapping the bale as you go. If ground conditions make it difficult to roll the bale, you can put a tarp down for the bale to roll on," says Jan Wasberg.
Wasberg says that by mounting the wrapper on the front of the tractor, they can wrap high-moisture bales before they have a chance to dry down. Later, they transport the tightly wrapped silage bales back to the farm, handling them with a rounded 3-pt. bale fork they built that doesn't puncture the plastic.
Contact: FARM SHOW Followup, Jan Wasberg, Kunivagen 170 B, 66580 Finland Europa (ph 358613464337).
