Pressure Adjusting Crank For Planter Closing Wheels

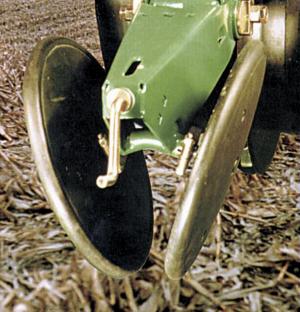

Pressure Adjusting Crank For Planter Closing Wheels PLANTING EQUIPMENT Accessories 21-2-23 Downpressure on planter closing wheels can be quickly and accurately adjusted with this new pressure-adjusting crank that replaces the original adjusting bolt, says R K Products, Inc., East Moline, Ill. The crank is offered as an addition to the company's do-it-yourself planter repair kits, for the gauge wheel arm pivot, closing wheel frame pivot, and closing wheel bearing support. It uses a threaded adjustment that allows you to easily adjust the downpressure spring even when the planter is in the operating position. A nylon washer between the thrust bushing and frame reduces friction. The ability to adjust closing wheel downpressure in single thread increments allows you to precisely match closing wheel pressure to soil conditions, says the company. The crank adjustment provides a greater adjustment range than most handle-type quick-adjust systems because no space is required for a hook on the spring and for a handle, according to the company. If you operate the closing wheels with no spring tension the offset weight of the crank will prevent it from turning and accidentally falling off. Sells for $8.50 per row plus S&H. Fits Deere 7000 and Kinze planters. Contact: FARM SHOW Followup, R K Products, Inc., 3802 Jean St., East Moline, Ill. 61244 (ph 800 580-6818 or 309 792-1927; fax 309 792-1924).
