Combine Pickup Sweeps The Swath
![](/images/resize.php?w=300&img=/images/articles/10/4/212_l.jpg) ✖ ![](/images/ajax-loader.gif) |
"With this new-style pickup you don't need to zig-zag back and forth on light windrows to pick up all the grain," says Dave Friesen, inventor of the "Rake-Up" add-on combine pickup that's being manufactured by A-J Machine, Saskatoon, Sask.
"Conventional pickups can leave 10 to 15% of the swath on the ground. The Rake-Up's sideways sweeping action picks up the swath allowing you to go faster, yet pick up all of the swath," reports Friesen.

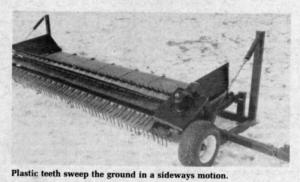

The pickup works much like a side-mounted rake lying on its side. In place of solid belting, there are six individual hard plastic sections with plastic teeth that sweep the ground in a sideways motion to pick up the swath.
Friesen says the rig's slower turning speed combined with the side-motion of the fingers at the bottom of the sweep causes less flipping action, resulting in less stones in your grain.
The Rake-Up has been field-tested at 8-mph while turning at 80 rpms. Initially, the pickup is available in 10-ft. widths. Power's supplied by the combine's drive system.
$5,400 (Canadian).
For more information, contact: FARM SHOW Followup, A-J Machine, 408 44th St. E., Saskatoon, Sask. S7K 0W1 (ph 306 931-0808).
