Self-Contained Hydraulic Dump Trailer

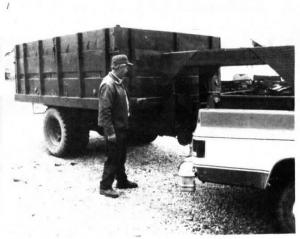

Illinois farmer Harry Nelson turned a junked dump truck into a handy self-powered dump trailer that he can pull behind either a pickup or tractor with no need for auxiliary hydraulics.
Nelson cut the truck off behind the cab and built a gooseneck hitch for it. The trick was figuring out how to drive the pto-drive
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Self-Contained Hydraulic Dump Trailer GRAIN HANDLING Miscellaneous 15-2-11 Illinois farmer Harry Nelson turned a junked dump truck into a handy self-powered dump trailer that he can pull behind either a pickup or tractor with no need for auxiliary hydraulics.
Nelson cut the truck off behind the cab and built a gooseneck hitch for it. The trick was figuring out how to drive the pto-driven hydraulic lift which had been powered by the truck engine.

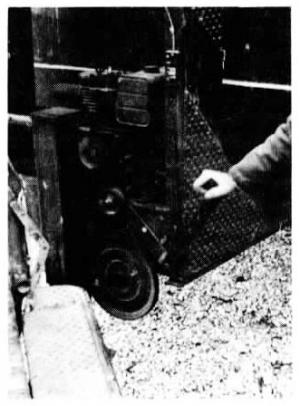

To solve the problem, Nelson mounted a small gas engine at the front of the trailer under the gooseneck. The engine belt-drives a pulley mounted on the pto shaft. To dump the trailer, he starts the engine and then pulls a lever that tightens an idler on the belt drive, engaging the pto shaft that drives the hydraulic lift.
Capacity of the self-contained trailer is 250 bu.
Contact: FARM SHOW Followup, Harry Nelson, Rural Route, Dow, Ill. 62022 (ph 618 885-5537).
