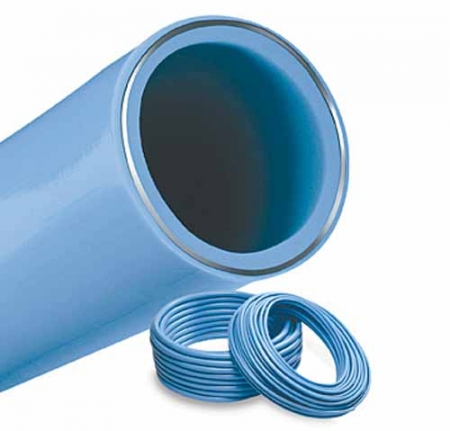

Setting up a shop for air-powered tools is fast and easy with Duratec Airline from IPEX. An aluminum core with inner and outer layers of high-density polyethylene (HDPE) combines the best features of metal and plastic. The inner and outer linings eliminate problems common to metal air lines.

The rigid aluminum core bends and holds position where desired. The exterior and interior HDPE layers protect the aluminum core from rusting, scale, pitting, corrosion and even light impact.

The unique design is 75 percent lighter than traditional copper or schedule 40 carbon steel pipe. The HDPE resistance to scale and lack of rust or corrosion eliminates clogging of lines, as well as tools and fixtures. It also reduces friction that can cause pressure drops and airflow restrictions.

The composite airline is available in 4 sizes from 3/8-in. to 1-in. and can handle air pressure from 200 psi at 73 degrees F to 160 psi at 140 degrees F. It comes in 100 and 300-ft. rolls for longer runs without connections.

Line installation and installation of fittings is simple. The nickel-plated brass or stainless steel fittings use double O-ring seals for extended life. The fittings are both quickly assembled or removed. No threading, fusing or cementing is required.

To install a fitting, simply remove the nut and split ring from the fitting and push them onto the pipe. Using a Duratec beveling tool, enlarge the pipe for the fitting and slip the fitting into the pipe. Slide the O-ring and the nut back over the end of the pipe and tighten down over the fitting.

Duratec airline distributors in Canada and North America can be located by contacting the company directly by email or phone.
