Combine Tows His Modified Grain Cart
By Lorn Manthey – Contributing Editor

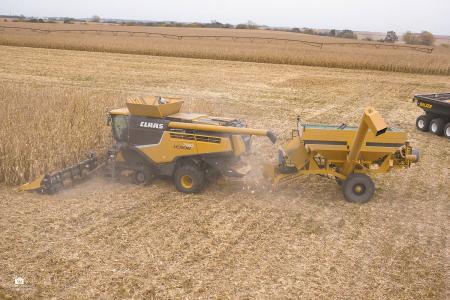

“I modified a used Orthman grain cart to pull behind my 780 Claas combine, which saves me a good chunk of money during harvest because it takes the place of a second cart, tractor and operator,” says Nebraska grain and cattle farmer Greg Kreikemeier. “I can fill the cart with up to 550 bushels using the unloading auger from the combine. When the field cart pulls alongside, I can empty both the cart and the combine without stopping.”
To configure the setup, Kreikemeier built a special hitch on the cart
using 2 long pieces of 3 by 5-in.
steel tubing and a single shorter
6 by 10-in. rectangular tube. The
smaller tubing connects to the front drive axle of the combine and pulls the
cart while the larger one connects to the rear axle under the straw spreader.
Kreikemeier estimates this setup puts about 4,000 lbs. of tongue weight on his
Claas 780 combine, which runs a 16-row corn head. The cart has its original
24.5 by 32-in. tires that follow in the same tracks as the combine.
Grain is delivered to the cart by the combine’s tank unloading auger from the transport position. Kreikemeier moved the auger’s potentiometer linkage to a different location so the combine’s computer thinks the auger never folds in. Grain falls from the combine auger into a hopper on the front of the cart, where a 16-in. bubble-up auger moves it to the center of the cart.
The cart’s power comes from a 170 hp engine salvaged from a used IH 1460
combine. It’s mounted on a box frame at the back of the cart, with a fuel tank
located between the wheels. A drive line that operates whenever the engine is
running powers the bubble up
auger. A 4-groove belt with a hydraulic tightener on the same shaft engages the
cart’s side discharge auger. Kreikemeier replaced the cart’s original 16-in.
discharge with a 20-in. auger and a deeper sump that unloads the cart 50
percent faster. “We can unload a full cart of about 550 bushels in 80 seconds,”
Kreikemeier says. “I can easily watch the cart activity on a monitor in the cab
connected to cameras on the back of the combine and top of the cart.”
The cart controls are on an electronic circuit board mounted in the
combine cab, programmable for bypassing the murphy safety system on the engine.
“I’ve got it programmed to run the starter on the cart motor for 8
seconds, start and stop the bubble
up and unloading augers, and turn the cart motor off if I’m not using it.”
Kreikemeier says.
The unload auger operation, grain gate, engine on/off and high/low throttle operate with four small wires from the cab to the cart. Hydraulic power for the cart is from the combine with 2 1/2-in. hoses.
“The pull-behind cart gives me a lot of flexibility during harvest
because I can break through a half-mile long field and make it part of the way
back before unloading to the cart pulled by the tractor,” Kreikemeier
says. “The $20,000 or so invested
in the unit has certainly been worthwhile.”
Go to farmshow.com to see a video of the tow-behind grain cart in
action.
