If you're having "impossible" ventilation problems in a livestock or poultry barn, or want the very latest in low-cost heating and ventilation for a new setup you're planning to build, leave it to Beaver -- a new heat exchanger system that boasts "up to 75%, or more reduction in heating costs".
The Beaver System uses outgoing warm foul air to heat incoming fresh air. In a well stocked, well insulated barn used to house cattle, hogs, horses, sheep, turkeys, layers or broilers, "free" body heat generated by the animals or birds is salvaged, eliminating the need for an expensive furnace or space heater.
"It's a lot cheaper to operate than conventional heating-ventilating systems, and more efficient than solar heat," explains George Rauenhorst who, along with his son Tom, engineered and developed the Beaver heat exchanger system. "I've worked on the concept 30 years and have tested it on my own farm for 10 years. I know it works," George told FARM SHOW.
The Rauenhorsts deliberately searched out problem situations to test the first commercial installations of their new heat exchanger. In one installation, for example, the humidity problem in a horse barn was so bad that the insulation was dripping wet and peeling off the ceiling and walls. "Three days after we installed the system, the insulation was dry and has been ever since," George points out.
"It's a cheap way to heat a calf barn," says Gene Dillon, Olivia, MN., dairyman who had one of the first prototype heat exchangers installed three years ago. "When it's 20 degrees below zero outside, fresh air comes in at 30 degrees above zero. The interior of the building stays dry, thus reducing the amount of bedding needed."

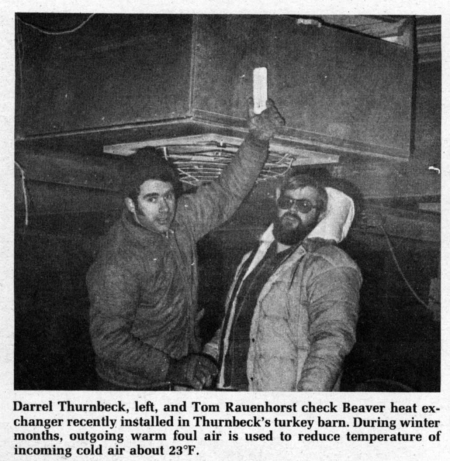

Last fall, Darrell Thurnbeck, Forest Lake, Minn., had the Rauenhorsts install the Beaver System in a barn used to house 300 breeder turkey toms. Thurnbeck figures the exchanger, complete with fans, replaces an 86,000 btu furnace and the fuel to operate it.
Here, according to Tom Rauenhorst, is how the savings pencils out:
"Each tom turkey, weighing 40 to 50 lbs., requires 10 cu. ft. of air per minute to keep the air free from dust and excessive moisture. With 300 birds in the building, the exchange system must bring in 3,000 cu. ft. of air per minute."
Tom further explains that 3,750 btu's/hr. are needed to heat 3,000 cu. ft, of air one degree. Outside air coming in at 10 degrees F is heated 23 degrees. With 3,000 cu. ft. of air movement, Thurnbeck salvages about 86,250 btu's of "free" heat provided by the turkey toms. (3,750 btu's times 23 degrees). Incoming air is heated, yet remains fresh -- with none of the oxygen burned out of it and no fumes or other impurities added, Tom points out.
"Heat exchangers have been around for a long time but haven't been successfully adapted to farm buildings," says George Rauenhorst. "They've been too expensive or they didn't work because of ice buildup or other problems."
Three key exclusive features of the Beaver system set it apart from others, according to the Rauenhorsts:
1. It's designed specifically for farm buildings and readily adapts to any livestock or poultry barn that's well insulated and has tight windows and doors. "We can space ducts at various intervals in buildings up to 160 ft. wide, or wider, with uniform ventilation throughout -- no dead air spots. Size of the heat exchanger ducts can range from 4 to 8 ft. wide, from 6 in. to 2 ft. high, and up to 80 ft. long. In wide buildings, ducts can come in from both sides towards the center.
2. Exclusive tabulator bars built inside the exchanger ducts keep the air stirred and turbulated as it moves through.
3. A special metal sheet, made of high grade industrial aluminum, is used to separate the "inlet" and "outlet" ducts. The sheet absorbs heat from warm foul air and transfers it to cold air coming in through the adjacent duct.
"It's important that the inlet and outlet ducts be matched and balanced," explains Tom. "You can't take heat off the aluminum sheet any faster than it's put on, and vice versa. We get some ice build up inside the warm air duct in below zero weather but not enough to cause any problems."
Looking ahead, the Rauenhorsts hope to develop heat exchanger ducts which can be adjusted, as needed, for size. For example, in cold weather, they could be collapsed and restricted to put air under more pressure and thus increase the rate of heat exchange.
