Homemade Socket Holder
Chuck Knipp, Palco, Kan.: "I have a lot of sockets in my shop without cases and nowhere to put them. So I made a socket holder using a piece of 1 1/2-in. angle iron mounted to the wall. I spaced the sockets out on the bar and then marked each location with chalk. Then I ground down the points on some nails and tack-welded them to the bar. After a little paint, I had a cheap, durable socket holder.

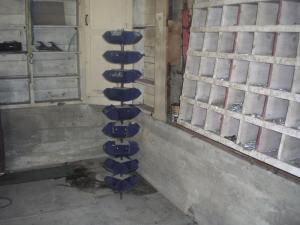

"I made a rotating screw and nail holder by welding a piece of 3/4-in. sucker rod to an old disc blade to make a stand. Then I attached metal grain leg buckets to pieces of strap iron that fit over the sucker rod. Four buckets weld to each strap iron bracket, which has a 3/4 in. hole in it. I tack-welded large washers to the sucker rod to hold each set of buckets in place. They spin freely around the rod. It took only a couple hours to build but is a great way to organize screws, nuts, bolts, nails, staples and other small parts."
Click here to download page story appeared in.
Click here to read entire issue
Homemade Socket Holder FARM SHOP Miscellaneous Chuck Knipp Palco Kan : I have a lot of sockets in my shop without cases and nowhere to put them So I made a socket holder using a piece of 1 1/2-in angle iron mounted to the wall I spaced the sockets out on the bar and then marked each location with chalk Then I ground down the points on some nails and tack-welded them to the bar After a little paint I had a cheap durable socket holder I made a rotating screw and nail holder by welding a piece of 3/4-in sucker rod to an old disc blade to make a stand Then I attached metal grain leg buckets to pieces of strap iron that fit over the sucker rod Four buckets weld to each strap iron bracket which has a 3/4 in hole in it I tack-welded large washers to the sucker rod to hold each set of buckets in place They spin freely around the rod It took only a couple hours to build but is a great way to organize screws nuts bolts nails staples and other small parts
