Big Air Compressor Fitted With Hydraulics
Paul Bedard needed air and hydraulics for a rock drill he was building and it only made sense to run both off the same motor. He was told it couldn't be done. That was all the motivation he needed to get it done.
"Most big compressor units are designed to provide enough air for multiple tools, but I only needed
..........![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book

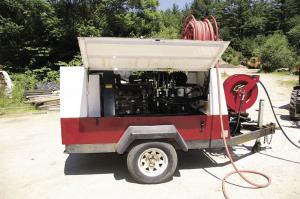

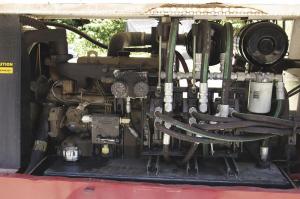

Big Air Compressor Fitted With Hydraulics FARM SHOP Miscellaneous Paul Bedard needed air and hydraulics for a rock drill he was building and it only made sense to run both off the same motor He was told it couldn t be done That was all the motivation he needed to get it done Most big compressor units are designed to provide enough air for multiple tools but I only needed enough for one explains Bedard I figured I could use the extra horsepower for a hydraulic pump He bought a 185 psi 1995 Chicago compressor complete with trailer There was more than enough room under the hood for the hydraulic pump and valves where air tools would normally have been stored The key to sending power to the hydraulic pump was a specially-designed double-groove pulley for the driveshaft and a matching double-groove pulley on an electric clutch Bedard had the pulley fabricated at a local machine shop to piggyback on the single-groove pulley that powered the compressor The clutch lets me transfer power to the hydraulic pump with the flick of a switch says Bedard The hydraulic pump is capable of 2 500 psi at 2 000 rpm s with 17 gpm flow The 18-gal oil reservoir handles flow without any heat buildup so no cooling system is needed However even when using both the compressor and the pump the engine runs at only a high idle Hydraulic power is channeled first to a pressure and flow control valve that splits flow between two outlets Flow ratios can be as much as 100 percent to either outlet Flow from one splitter outlet goes to a valve designed for use with a hydraulic cylinder It springs to center when released The second splitter outlet directs flow to a variable speed control Here flow splits again Twin controls on the speed control can adjust flow on a scale of 0 to 10 to their respective outputs to valves intended to control hydraulic motors Both valves have forward reverse and detent positions All three valves have dual lines going to spools with quick disconnects mounted on the front of the machine The air spool and hose are mounted on top of the machine Bedard can use the air and hydraulic lines independently or together for a variety of tools or jointly on the rock drill No company makes one and everyone said it couldn t be done chuckles Bedard I did it and it works great Contact: FARM SHOW Followup Paul Bedard 173 Tibbetts Hill Rd Goffstown N H 03045 ph 603 497-8189
