Tools Turn Big Rocks Into Income
Paul Bedard drills, slices and reshapes large boulders that once were an irritating annoyance on his New Hampshire Farm. He can cut chunks of granite into light poles or mailbox posts and he can create a picnic table or garden bench by slicing up giant boulders. What's amazing about what Bedard is doi..........
![](/img/download-story.png)
You must sign in, subscribe or renew to see the page.
![](/img/entire-issue.png)
You must sign in, subscribe or renew to see the flip-book
Tools Turn Big Rocks Into Income FARM SHOP Tools Paul Bedard drills slices and reshapes large boulders that once were an irritating annoyance on his New Hampshire Farm He can cut chunks of granite into light poles or mailbox posts and he can create a picnic table or garden bench by slicing up giant boulders
What s amazing about what Bedard is doing is that he built all of his own cutting and drilling equipment himself
I can dig up a big rock from a customer s yard and turn it into something beautiful says Bedard Then it goes back to be used in the yard where it was found
Rock Drill

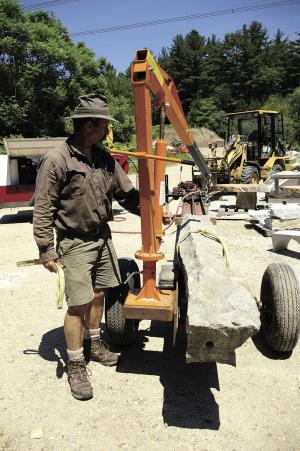

Bedard s rock drill is a standard air drill used to drill blast holes for quarrying rock Bedard removed the handle turned it on its side and mounted it to a carriage The carriage consists of an I-beam laid on its side and fitted with wheels
I can drill holes through 8-ft granite posts to make one-piece light posts If I used a regular drill I would have to drill through short pieces and stack them explains Bedard
The weight of the drill and carriage is sufficient to balance the bit Minimal pressure is needed to advance the bit as it pulls itself through the rock as it drills To keep the drill moving forward Bedard attached a chain to the carriage and ran it forward the length of the I-beam and around a sprocket idler From there the chain runs back under the beam through a hydraulic-powered drive unit and back to the carriage A spring connects the chain to the carriage
If the drill has slowed down a bit the spring extends a little until the drill catches up again says Bedard I made the drive from an old winch I disassembled it and machined a piece to go over the shaft and put a sprocket on it It s a two speed with automatic kick off I drill at low speed and then switch to high speed to retract the bit out of the stone When the carriage returns to home the drive kicks into neutral
Rock Saw

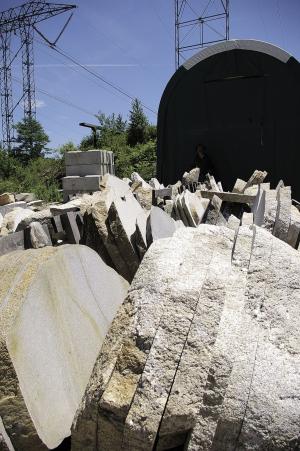

Bedard s made-it-myself rock saw is what really opened up recycling opportunities for him It allows him to slice through 5-ton 4 by 4 by 8-ft rocks with ease His only real size limit is his 17 000-lb capacity loader
While Bedard prefers to keep the innovative design of his rock saw under wraps he did share some of the specifications with FARM SHOW The diamond-coated cutting wire he uses is 45 ft long and runs at speeds up to 73 mph The bullwheels that carry the wire are 5 ft 3 in in diameter and ride on two vertical shafts used to adjust cutting height
On the main shaft I have a proprietary mechanism that provides spring tension to the wire says Bedard It keeps about 400 lbs of line tension on the wire
Aside from the wire most other components were salvaged from other equipment Bedard credits many friends in and out of the rock business for help acquiring needed components and providing advice
One of those friends is Roger Belisle a second-generation quarry man His dad built a rock saw that was the inspiration for Bedard s
When I was stumped Roger would say æWell you could do it this way says Bedard It seemed like having that possible solution in my back pocket would then allow me to come up with my own way to do it
The motorized carriage the rock rides on was used in tunneling under Boston for a highway project The rails it rides on came out of an old mine Power for the saw is provided by a 3-phase rotary converter fed by 80-amp 220-volt power The 3-phase power converter is wired to a switch mechanism and then to a 7 5 hp 1 200 rpm motor that came out of a sanding drum assembly in a woodworking shop The electronics was one part of the project he relegated to experts
I had the motor taken apart serviced and tested says Bedard The same shop provided the 3-phase converter and switch so it all matched
Rock saws require a constant flow of water over the cut Bedard picked up an old diaphragm pump used at construction sites The pump is activated by a float switch to pull water out of a barrel and cycle it to the stone The pump s 3-phase motor handles the constant on and off of the float switch
Building the saw took Bedard 6 months of nights and weekends filling in around his landscape work The completed saw cost him a fraction of the $100 000 a commercial rock saw would have cost
Bedard uses the rocksaw to make boulders into picnic tables benches and tabletops He also slices stone into flat pieces for doorsteps patios and walkways With the addition of a new motorized jig he can even use it like a giant lathe cutting perfect circles out of stone
Stone Lathe
I call the motorized jig a stone lathe says Bedard It fits on the carriage of the stone saw and turns the stone as the wire is cutting it It has a capacity of a 3-ft radius and 3 ft between centers and can turn a 4 000-lb stone
To get the control he needs Bedard uses a 3-phase motor and a series of gear reductions He can quickly change speeds with a sprocket change He needs variable speeds to match the size of whatever stone he s working on
I can turn a slab of stone slicing into it and cutting a round stone out of it says Bedard I can also drill a hole in a slab cut the wire pass it through and mend it to cut a circle out of solid stone
Bedard sees lots of uses for the round slabs he cuts including tabletops and kick wheels for potters Any round object now made with concrete could be done from glacial rock slabs
Contact: FARM SHOW Followup Paul Bedard 173 Tibbetts Hill Rd Goffstown NH 03045 ph603 497-8189
