Gate Hinge Held Tight With Muffler Clamps
![](/images/resize.php?w=300&img=/images/articles/40/2/35292_l.jpg) ✖ ![](/images/ajax-loader.gif) |
Russell Hackman has been featured previously in FARM SHOW for clever fencing ideas developed over 40 years of farming and ranching. He sent us a package recently of his newest invention that’s bound to catch the eye of anyone who has ever had gates break loose from a metal post hinge.
“The clamp-on hinges sold in most farm stores work fine on a small yard gate, but they aren’t much good when it comes to holding a large pipe gate on a metal post,” says Hackman. “I’ve had them break off, fall off, bend or just plain rust up. Every one of those problems is a nuisance. Now I make my own brackets and they can hold a gate that weighs a couple hundred pounds.”

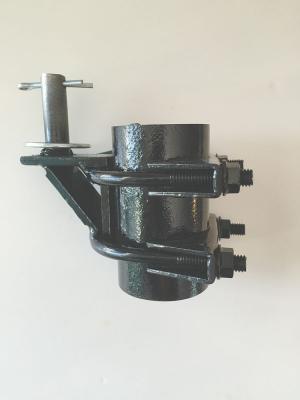

Hackman makes his metal hinge supports from flat stock that’s 1/4 in. thick and 1 1/2 in. wide. To make 2 hinge brackets he cuts 6 pieces of the flat stock 2 1/2 in. long. Three pieces are used for each bracket: one for the horizontal surface, one for the vertical surface and the other for a diagonal support. He welds the pieces together in the shape of a triangle, then welds a 1/2-in. by 2-in. metal shaft upright on the flat surface. The shaft supports one of the gate eyeloops and holds it in place with a cotter pin inserted on top of the shaft.
Hackman uses 2 heavy duty 2 1/2-in. muffler brackets to attach each hinge bracket to a 2 1/2-in. metal post. He welds one of the U-bolts onto the 90 degree angle under the top of the hinge and another one below the 45 degree angle support on the bottom. “These hinge brackets are a lot stronger than the ones you can buy in a store,” says Hackman. “I’ve never had one break, even on a gate that’s 16 ft. long.”
Hackman says for metal posts larger than 2 1/2 in. he uses larger muffler clamps and that makes an even stronger hinge. The hinge bracket can also be adapted for wooden posts using a pair of U-bolts and a metal strap to secure the hinge. Another alternative would be to make the vertical support on the bracket about 6 in. long, then drill 2 holes for 3/8-in. bolts that thread through the post and are held on the opposite side with nuts and lock washers.
Contact: FARM SHOW Followup, Russell Hackman, P.O. Box 1084, 2523 FM 884, Yorktown, Texas 78164 (ph 361 564-8855).
