Bin Monitors Can Add Moisture To Dry Grain
 ✖  |
Tony Wendler, owner of Farm Shop Manufacturing, originally created the End Zone Grain Temp Guard system for natural air drying of corn and soybeans. Wendler wondered if he could use fan controls to add humidity rather than dry air to his overly dry soybeans, thereby raising their moisture content and adding weight.
Using two 10-hp. fans on a half-full bin of soybeans, he managed to raise the moisture content from 8 to almost 13 percent in less than three weeks of spring weather.
“I had temp and humidity monitoring inside the grain so I could see equilibrium humidity was gradually increasing,” Wendler says. “It was a money-maker to be able to add moisture to the beans.”
He explains that on average, raising moisture levels from 10 to 13 percent in 20,000 bushels of soybeans equates to an extra 900 bushels, worth well over $15,000.
The End Zone Grain Temp Guard is built to be compatible with existing blowers and fans using a specially designed relay added to the motor’s magnetic starter to manipulate the coil.
Monitors measure temperature and humidity to track grain conditioning. High and low temp/humidity warnings with audible and visual alarms detect changes in target values. Fans are programmed to run only when the outside air is between the programmed limits.
Farm Shop Mfg. supplies equilibrium charts to identify ideal settings for both humidity and temperature levels.

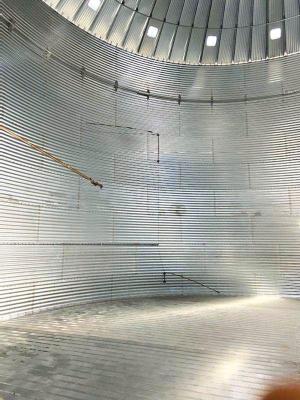

Sensors are hung in various locations inside a bin on lengths of rebar mounted to sidewalls or ladder supports. Cables connecting the sensors to monitors come in pre-set lengths of 45 to 150 ft.
“It’s best to position the sensors looking for moisture fronts moving from floor to roof,” Wendler says. “In larger 42 to 48-ft. bins, we’ll split them into pie shapes for risk of hot spots. Mount rebar off the back wall, monitoring in thirds, placing sensors in a corkscrew pattern so each one monitors different areas and heights. It’s also best to mount the monitors close to the exterior door and ladder area to conserve cable length.”
Control systems and hardware are built and assembled in Armstrong, while cables are manufactured in Switzerland. Kits include everything required and are designed to be farmer installed.
Dual temp alarm system monitors retail for $1,500 while fan controls including temperature and humidity monitors sell for $2,300.
Contact: FARM SHOW Followup, Tony Wendler, Farm Shop Mfg., 1042 570 Ave., Armstrong, Iowa 50514 (ph 712-520-6051; sales@FarmShopMfg.com; www.farmshopmfg.com).
