Gravity Box Converted To Low-Cost Dryer

2022 - Volume #46, Issue #3, Page #16

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

Aeration bin flooring can be used to turn a gravity box wagon into a low-cost crop dryer. Scott Ravenkamp calls the ones he built “air wagons” and uses them to dry down small batches of seed.
“I’ve used air wagons to dry down chaffy seed before rethreshing it, as well as with small batches of sunflowers and other seed,” says Ravenkamp. “It’s easy to turn the seed, moving it from one wagon to another. If I want the seed to dry faster, I hook up a fan to blow air through the floor.”
Ravenkamp built his first air wagon when a neighbor needed a way to dry down a few hundred bushels of Jimmy Red field corn (Vol. 46, No. 1). “You can’t put a few hundred bushels of grain on a dryer bin floor and dry it,” says Ravenkamp.

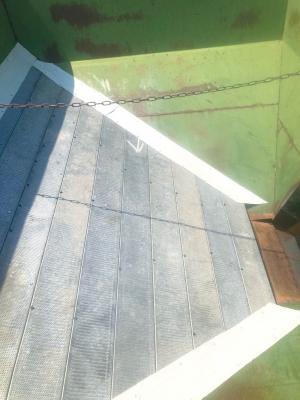

Instead, he used aeration flooring that had been salvaged from a local elevator. He cut the legs off the flooring and used self-tapping screws to attach it to the floor of the gravity box. Strips of salvaged metal roofing were screwed to the edge of the flooring as flashing.
“The local grain dealer was planning to scrap the flooring,” recalls Ravenkamp. “The flooring from one 48-ft. bin can do a bunch of wagons.”
The first one worked so well that he has made more. At first, he worked with 225 or 250-bushel gravity boxes and 12-in. fans. He has since moved on to 300 to 400-bushel wagons with 18-in. fans. He notes that they, too, are too small for use with modern combines.
“We now cut the legs, so the flooring is around 2 in. off the wagon floor,” says Ravenkamp. “We’ve used them for lots of small seed batches like clover and alfalfa. There used to be special wagons for those small seeds, but these are better. You can turn them from one wagon to another in just a few minutes.”
Ravenkamp is the contract production manager for Green Cover Seed. The larger air wagons have found a home there.
“We get lots of small batches of seed that we can’t dry with a bin,” says Ravenkamp. “The air wagons allow us to dry it efficiently and move it easily as needed. If we want to use them for normal grain, they are still completely useful.”
Contact: FARM SHOW Followup, Scott Ravenkamp, 52570 883 Rd., Verdigre, Neb. 68783 (ph 719-740-0705; sravenkamp@icloud.com).
