Railroad Bale Wagon Dumps Its Own Load
"I spent only $10 to build this 3-bale trailer that eliminates the need for a second loader tractor to unload bales," says Carey McNeil, Bronaugh, Mo., who used railroad rails to build a heavy-duty self-unload trailer.
McNeil started with the running gear from an old hay wagon. He fitted it with a bale carrying f
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Railroad Bale Wagon Dumps Its Own Load HAY & FORAGE HARVESTING Bale Handling (5) 13-6-21 "I spent only $10 to build this 3-bale trailer that eliminates the need for a second loader tractor to unload bales," says Carey McNeil, Bronaugh, Mo., who used railroad rails to build a heavy-duty self-unload trailer.

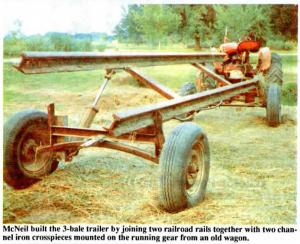

McNeil started with the running gear from an old hay wagon. He fitted it with a bale carrying frame made out of two 16-ft. railroad rails joined together by two channel iron crosspieces. To dump the bales, he salvaged a pair of 3 in. dia. by 18-in. long hydraulic cylinders taken from a worn-out elevator. The entire trailer, which is fitted with 15-in. wheels, weighs under 1,000 lbs.
Three bales are placed end-to-end on the rails for transport back to the farm. To unload he simply tips up the rails with the cylinders and they roll right off.
"The rails were given to me just for hauling them away and I had everything else I needed except for some hose fittings which I had to buy," says McNeil.
Contact FARM SHOW Followup, Carey McNeil, Rt. 1, Box 69A, Bronaugh, Mo. 64728 (ph 417 922-3762).
