Turn Your Loader Into A Forklift

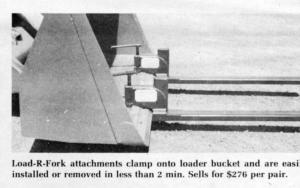

The attachments clamp onto the bucket - no need to drill any holes. Once the clamps are tightened, the forks reportedly can lift up to 4,000 lbs. Overall length of each fork is 72 in. Loading length is a full 4 ft. The forks extend 2 ft. under the bucket to provide balance and leverage. They're constructed of 1i4 in. thick 2 x 4 in. hot rolled steel tubing. Each fork weighs 85 lbs.
"One man can easily install both forks in less than 2 minutes," says Remias. "Simply clamp them on solidly at the desired distance apart and they're ready to use. When the job is done, just unscrew the clamps and the forks can be removed for easy storage."
For more details, contact: FARM SHOW Followup, Farnum Equipment Co., Box 21447, Phoenix, Ariz. 85034 (ph 602-244-8261).
